mdadm 命令

  • 创建软 raid
    1

    mdadm -C -v /dev/创建的设备名 -l级别 -n数量 添加的磁盘 [-x数量 添加的热备份盘]

    • -C: 创建一个新的阵列–create
    • -v: 显示细节–verbose
    • -l: 设定RAID级别–level=
    • -n: 指定阵列中可用device数目–raid-devices=
    • -x: 指定初始阵列的富余device数目–spare-devices=,空闲盘(热备磁盘)能在工作盘损坏后自动顶替
  • 查看详细信息
    1

    mdadm -D /dev/设备名

  • 查看 RAID 状态
    1

    cat /proc/mdstat

  • 模拟损坏
    1

    mdadm -f /dev/设备名 磁盘

  • 移除损坏的磁盘
    1

    mdadm -r /dev/设备名 磁盘

  • 添加新硬盘作为热备份盘
    1

    mdadm -a /dev/设备名 磁盘


RAID0

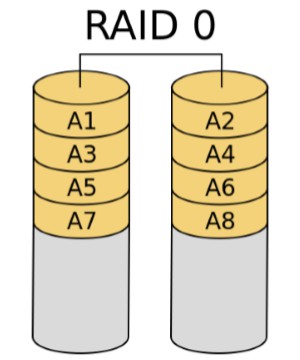

  • RAID0俗称条带,它将两个或多个硬盘组成一个逻辑硬盘,容量是所有硬盘之和,因为是多个硬盘组合成一个,故可并行写操作,写入速度提高,但此方式硬盘数据没有冗余,没有容错,一旦一个物理硬盘损坏,则所有数据均丢失。因而,RAID0适合于对数据量大,但安全性要求不高的场景,比如音像、视频文件的存储等
  • 实验: RAID0创建,格式化,挂载使用
  • 添加2块20G的硬盘,分区,类型ID为fd
    1
    2
    3

    [root@localhost ~]# fdisk -l | grep raid
    /dev/sdb1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdc1            2048    41943039    20970496   fd  Linux raid autodetect

  • 创建RAID0
    1
    2
    3
    4
    5

    [root@localhost ~]# mdadm -C -v /dev/md0 -l0 -n2 /dev/sd{b,c}1
    mdadm: chunk size defaults to 512K
    mdadm: Fail create md0 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md0 started.

  • 查看raidstat状态
    1
    2
    3
    4
    5
    6

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid0]
    md0 : active raid0 sdc1[1] sdb1[0]
          41906176 blocks super 1.2 512k chunks

    unused devices: <none>

  • 查看RAID0的详细信息
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28

    [root@localhost ~]# mdadm -D /dev/md0
    /dev/md0:
               Version : 1.2
         Creation Time : Sun Aug 25 15:28:13 2019
            Raid Level : raid0
            Array Size : 41906176 (39.96 GiB 42.91 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 15:28:13 2019
                 State : clean
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

            Chunk Size : 512K

    Consistency Policy : none

                  Name : localhost:0  (local to host localhost)
                  UUID : 7ff54c57:b99a59da:6b56c6d5:a4576ccf
                Events : 0

        Number   Major   Minor   RaidDevice State
           0       8       17        0      active sync   /dev/sdb1
           1       8       33        1      active sync   /dev/sdc1

  • 格式化
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    [root@localhost ~]# mkfs.xfs /dev/md0
    meta-data=/dev/md0               isize=512    agcount=16, agsize=654720 blks
             =                       sectsz=512   attr=2, projid32bit=1
             =                       crc=1        finobt=0, sparse=0
    data     =                       bsize=4096   blocks=10475520, imaxpct=25
             =                       sunit=128    swidth=256 blks
    naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
    log      =internal log           bsize=4096   blocks=5120, version=2
             =                       sectsz=512   sunit=8 blks, lazy-count=1
    realtime =none                   extsz=4096   blocks=0, rtextents=0

  • 挂载使用
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    [root@localhost ~]# mkdir /mnt/md0
    [root@localhost ~]# mount /dev/md0 /mnt/md0/
    [root@localhost ~]# df -hT
    Filesystem              Type      Size  Used Avail Use% Mounted on
    /dev/mapper/CentOS-root xfs        17G 1013M   16G   6% /
    devtmpfs                devtmpfs  901M     0  901M   0% /dev
    tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
    tmpfs                   tmpfs     912M  8.7M  904M   1% /run
    tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
    /dev/sda1               xfs      1014M  143M  872M  15% /boot
    tmpfs                   tmpfs     183M     0  183M   0% /run/user/0
    /dev/md0                xfs        40G   33M   40G   1% /mnt/md0


RAID1

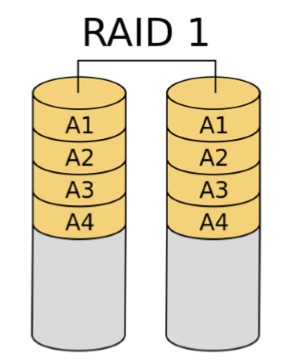

  • RAID1俗称镜像,它最少由两个硬盘组成,且两个硬盘上存储的数据均相同,以实现数据冗余。RAID1读操作速度有所提高,写操作理论上与单硬盘速度一样,但由于数据需要同时写入所有硬盘,实际上稍为下降。容错性是所有组合方式里最好的,只要有一块硬盘正常,则能保持正常工作。但它对硬盘容量的利用率则是最低,只有50%,因而成本也是最高。RAID1适合对数据安全性要求非常高的场景,比如存储数据库数据文件之类
  • 实验: RAID1创建,格式化,挂载使用,故障模拟,重新添加热备份
  • 添加3块20G的硬盘,分区,类型ID为fd。
    1
    2
    3
    4

    [root@localhost ~]# fdisk -l | grep raid
    /dev/sdb1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdc1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdd1            2048    41943039    20970496   fd  Linux raid autodetect

  • 创建RAID1,并添加1个热备份盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11

    [root@localhost ~]# mdadm -C -v /dev/md1 -l1 -n2 /dev/sd{b,c}1 -x1 /dev/sdd1
    mdadm: Note: this array has metadata at the start and
        may not be suitable as a boot device.  If you plan to
        store '/boot' on this device please ensure that
        your boot-loader understands md/v1.x metadata, or use
        --metadata=0.90
    mdadm: size set to 20953088K
    Continue creating array? y
    mdadm: Fail create md1 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md1 started.

  • 查看raidstat状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1]
    md1 : active raid1 sdd1[2](S) sdc1[1] sdb1[0]
          20953088 blocks super 1.2 [2/2] [UU]
          [========>............]  resync = 44.6% (9345792/20953088) finish=0.9min speed=203996K/sec

    unused devices: <none>

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1]
    md1 : active raid1 sdd1[2](S) sdc1[1] sdb1[0]
          20953088 blocks super 1.2 [2/2] [UU]

    unused devices: <none>

  • 查看RAID1的详细信息。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31

    [root@localhost ~]# mdadm -D /dev/md1
    /dev/md1:
               Version : 1.2
         Creation Time : Sun Aug 25 15:38:44 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 3
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 15:39:24 2019
                 State : clean, resyncing
        Active Devices : 2
       Working Devices : 3
        Failed Devices : 0
         Spare Devices : 1

    Consistency Policy : resync

         Resync Status : 40% complete

                  Name : localhost:1  (local to host localhost)
                  UUID : b921e8b3:a18e2fc9:11706ba4:ed633dfd
                Events : 6

        Number   Major   Minor   RaidDevice State
           0       8       17        0      active sync   /dev/sdb1
           1       8       33        1      active sync   /dev/sdc1

           2       8       49        -      spare   /dev/sdd1

  • 格式化。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    [root@localhost ~]# mkfs.xfs /dev/md1
    meta-data=/dev/md1               isize=512    agcount=4, agsize=1309568 blks
             =                       sectsz=512   attr=2, projid32bit=1
             =                       crc=1        finobt=0, sparse=0
    data     =                       bsize=4096   blocks=5238272, imaxpct=25
             =                       sunit=0      swidth=0 blks
    naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
    log      =internal log           bsize=4096   blocks=2560, version=2
             =                       sectsz=512   sunit=0 blks, lazy-count=1
    realtime =none                   extsz=4096   blocks=0, rtextents=0

  • 挂载使用。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    [root@localhost ~]# mkdir /mnt/md1
    [root@localhost ~]# mount /dev/md1 /mnt/md1/
    [root@localhost ~]# df -hT
    Filesystem              Type      Size  Used Avail Use% Mounted on
    /dev/mapper/centos-root xfs        17G 1014M   16G   6% /
    devtmpfs                devtmpfs  901M     0  901M   0% /dev
    tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
    tmpfs                   tmpfs     912M  8.7M  904M   1% /run
    tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
    /dev/sda1               xfs      1014M  143M  872M  15% /boot
    tmpfs                   tmpfs     183M     0  183M   0% /run/user/0
    /dev/md1                xfs        20G   33M   20G   1% /mnt/md1

  • 创建测试文件。
    1
    2
    3

    [root@localhost ~]# touch /mnt/md1/test{1..9}.txt
    [root@localhost ~]# ls /mnt/md1/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 故障模拟。
    1
    2

    [root@localhost ~]# mdadm -f /dev/md1 /dev/sdb1
    mdadm: set /dev/sdb1 faulty in /dev/md1

  • 查看测试文件。
    1
    2

    [root@localhost ~]# ls /mnt/md1/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 查看状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1]
    md1 : active raid1 sdd1[2] sdc1[1] sdb1[0](F)
          20953088 blocks super 1.2 [2/1] [_U]
          [=====>...............]  recovery = 26.7% (5600384/20953088) finish=1.2min speed=200013K/sec

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md1
    /dev/md1:
               Version : 1.2
         Creation Time : Sun Aug 25 15:38:44 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 3
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 15:47:57 2019
                 State : active, degraded, recovering
        Active Devices : 1
       Working Devices : 2
        Failed Devices : 1
         Spare Devices : 1

    Consistency Policy : resync

        Rebuild Status : 17% complete

                  Name : localhost:1  (local to host localhost)
                  UUID : b921e8b3:a18e2fc9:11706ba4:ed633dfd
                Events : 22

        Number   Major   Minor   RaidDevice State
           2       8       49        0      spare rebuilding   /dev/sdd1
           1       8       33        1      active sync   /dev/sdc1

           0       8       17        -      faulty   /dev/sdb1

  • 再次查看状态
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1]
    md1 : active raid1 sdd1[2] sdc1[1] sdb1[0](F)
          20953088 blocks super 1.2 [2/2] [UU]

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md1
    /dev/md1:
               Version : 1.2
         Creation Time : Sun Aug 25 15:38:44 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 3
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 15:49:28 2019
                 State : active
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 1
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:1  (local to host localhost)
                  UUID : b921e8b3:a18e2fc9:11706ba4:ed633dfd
                Events : 37

        Number   Major   Minor   RaidDevice State
           2       8       49        0      active sync   /dev/sdd1
           1       8       33        1      active sync   /dev/sdc1

           0       8       17        -      faulty   /dev/sdb1

  • 移除损坏的磁盘
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30

    [root@localhost ~]# mdadm -r /dev/md1 /dev/sdb1
    mdadm: hot removed /dev/sdb1 from /dev/md1

    [root@localhost ~]# mdadm -D /dev/md1
    /dev/md1:
               Version : 1.2
         Creation Time : Sun Aug 25 15:38:44 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 15:52:57 2019
                 State : active
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:1  (local to host localhost)
                  UUID : b921e8b3:a18e2fc9:11706ba4:ed633dfd
                Events : 38

        Number   Major   Minor   RaidDevice State
           2       8       49        0      active sync   /dev/sdd1
           1       8       33        1      active sync   /dev/sdc1

  • 重新添加热备份盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32

    [root@localhost ~]# mdadm -a /dev/md1 /dev/sdb1
    mdadm: added /dev/sdb1

    [root@localhost ~]# mdadm -D /dev/md1
    /dev/md1:
               Version : 1.2
         Creation Time : Sun Aug 25 15:38:44 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 3
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 15:53:32 2019
                 State : active
        Active Devices : 2
       Working Devices : 3
        Failed Devices : 0
         Spare Devices : 1

    Consistency Policy : resync

                  Name : localhost:1  (local to host localhost)
                  UUID : b921e8b3:a18e2fc9:11706ba4:ed633dfd
                Events : 39

        Number   Major   Minor   RaidDevice State
           2       8       49        0      active sync   /dev/sdd1
           1       8       33        1      active sync   /dev/sdc1

           3       8       17        -      spare   /dev/sdb1


RAID5

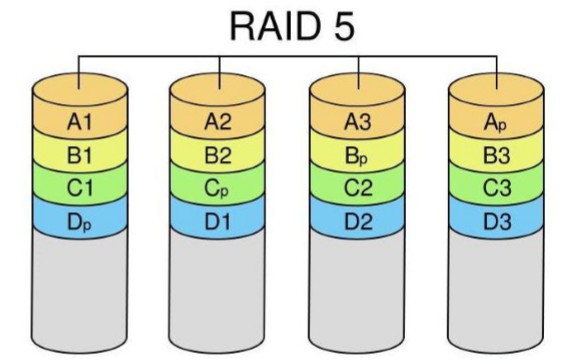

  • RAID5最少由三个硬盘组成,它将数据分散存储于阵列中的每个硬盘,并且还伴有一个数据校验位,数据位与校验位通过算法能相互验证,当丢失其中的一位时,RAID控制器能通过算法,利用其它两位数据将丢失的数据进行计算还原。因而RAID5最多能允许一个硬盘损坏,有容错性。RAID5相对于其它的组合方式,在容错与成本方面有一个平衡,因而受到大多数使用者的欢迎。一般的磁盘阵列,最常使用的就是RAID5这种方式
  • 实验: RAID5创建,格式化,挂载使用,故障模拟,重新添加热备份
  • 添加4块20G的硬盘,分区,类型ID为fd。
    1
    2
    3
    4
    5

    [root@localhost ~]# fdisk -l | grep raid
    /dev/sdb1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdc1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdd1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sde1            2048    41943039    20970496   fd  Linux raid autodetect

  • 创建RAID5,并添加1个热备份盘。
    1
    2
    3
    4
    5
    6
    7
    8

    [root@localhost ~]# mdadm -C -v /dev/md5 -l5 -n3 /dev/sd[b-d]1 -x1 /dev/sde1
    mdadm: layout defaults to left-symmetric
    mdadm: layout defaults to left-symmetric
    mdadm: chunk size defaults to 512K
    mdadm: size set to 20953088K
    mdadm: Fail create md5 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md5 started.

  • 查看raidstat状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md5 : active raid5 sdd1[4] sde1[3](S) sdc1[1] sdb1[0]
          41906176 blocks super 1.2 level 5, 512k chunk, algorithm 2 [3/2] [UU_]
          [====>................]  recovery = 24.1% (5057340/20953088) finish=1.3min speed=202293K/sec

    unused devices: <none>

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md5 : active raid5 sdd1[4] sde1[3](S) sdc1[1] sdb1[0]
          41906176 blocks super 1.2 level 5, 512k chunk, algorithm 2 [3/3] [UUU]

    unused devices: <none>

  • 查看RAID5的详细信息。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33

    [root@localhost ~]# mdadm -D /dev/md5
    /dev/md5:
               Version : 1.2
         Creation Time : Sun Aug 25 16:13:44 2019
            Raid Level : raid5
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 3
         Total Devices : 4
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:15:29 2019
                 State : clean
        Active Devices : 3
       Working Devices : 4
        Failed Devices : 0
         Spare Devices : 1

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:5  (local to host localhost)
                  UUID : a055094e:9adaff79:2edae9b9:0dcc3f1b
                Events : 18

        Number   Major   Minor   RaidDevice State
           0       8       17        0      active sync   /dev/sdb1
           1       8       33        1      active sync   /dev/sdc1
           4       8       49        2      active sync   /dev/sdd1

           3       8       65        -      spare   /dev/sde1

  • 格式化。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    [root@localhost ~]# mkfs.xfs /dev/md5
    meta-data=/dev/md5               isize=512    agcount=16, agsize=654720 blks
             =                       sectsz=512   attr=2, projid32bit=1
             =                       crc=1        finobt=0, sparse=0
    data     =                       bsize=4096   blocks=10475520, imaxpct=25
             =                       sunit=128    swidth=256 blks
    naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
    log      =internal log           bsize=4096   blocks=5120, version=2
             =                       sectsz=512   sunit=8 blks, lazy-count=1
    realtime =none                   extsz=4096   blocks=0, rtextents=0

  • 挂载使用。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    [root@localhost ~]# mkdir /mnt/md5
    [root@localhost ~]# mount /dev/md5 /mnt/md5/
    [root@localhost ~]# df -hT
    Filesystem              Type      Size  Used Avail Use% Mounted on
    /dev/mapper/centos-root xfs        17G 1014M   16G   6% /
    devtmpfs                devtmpfs  901M     0  901M   0% /dev
    tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
    tmpfs                   tmpfs     912M  8.7M  904M   1% /run
    tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
    /dev/sda1               xfs      1014M  143M  872M  15% /boot
    tmpfs                   tmpfs     183M     0  183M   0% /run/user/0
    /dev/md5                xfs        40G   33M   40G   1% /mnt/md5

  • 创建测试文件。
    1
    2
    3

    [root@localhost ~]# touch /mnt/md5/test{1..9}.txt
    [root@localhost ~]# ls /mnt/md5/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 故障模拟。
    1
    2

    [root@localhost ~]# mdadm -f /dev/md5 /dev/sdb1
    mdadm: set /dev/sdb1 faulty in /dev/md5

  • 查看测试文件。
    1
    2

    [root@localhost ~]# ls /mnt/md5/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 查看状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md5 : active raid5 sdd1[4] sde1[3] sdc1[1] sdb1[0](F)
          41906176 blocks super 1.2 level 5, 512k chunk, algorithm 2 [3/2] [_UU]
          [====>................]  recovery = 21.0% (4411136/20953088) finish=1.3min speed=210054K/sec

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md5
    /dev/md5:
               Version : 1.2
         Creation Time : Sun Aug 25 16:13:44 2019
            Raid Level : raid5
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 3
         Total Devices : 4
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:21:31 2019
                 State : clean, degraded, recovering
        Active Devices : 2
       Working Devices : 3
        Failed Devices : 1
         Spare Devices : 1

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

        Rebuild Status : 12% complete

                  Name : localhost:5  (local to host localhost)
                  UUID : a055094e:9adaff79:2edae9b9:0dcc3f1b
                Events : 23

        Number   Major   Minor   RaidDevice State
           3       8       65        0      spare rebuilding   /dev/sde1
           1       8       33        1      active sync   /dev/sdc1
           4       8       49        2      active sync   /dev/sdd1

           0       8       17        -      faulty   /dev/sdb1

  • 再次查看状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md5 : active raid5 sdd1[4] sde1[3] sdc1[1] sdb1[0](F)
          41906176 blocks super 1.2 level 5, 512k chunk, algorithm 2 [3/3] [UUU]

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md5
    /dev/md5:
               Version : 1.2
         Creation Time : Sun Aug 25 16:13:44 2019
            Raid Level : raid5
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 3
         Total Devices : 4
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:23:09 2019
                 State : clean
        Active Devices : 3
       Working Devices : 3
        Failed Devices : 1
         Spare Devices : 0

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:5  (local to host localhost)
                  UUID : a055094e:9adaff79:2edae9b9:0dcc3f1b
                Events : 39

        Number   Major   Minor   RaidDevice State
           3       8       65        0      active sync   /dev/sde1
           1       8       33        1      active sync   /dev/sdc1
           4       8       49        2      active sync   /dev/sdd1

           0       8       17        -      faulty   /dev/sdb1

  • 移除损坏的磁盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34

    [root@localhost ~]# mdadm -r /dev/md5 /dev/sdb1
    mdadm: hot removed /dev/sdb1 from /dev/md5

    [root@localhost ~]# mdadm -D /dev/md5
    /dev/md5:
               Version : 1.2
         Creation Time : Sun Aug 25 16:13:44 2019
            Raid Level : raid5
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 3
         Total Devices : 3
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:25:01 2019
                 State : clean
        Active Devices : 3
       Working Devices : 3
        Failed Devices : 0
         Spare Devices : 0

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:5  (local to host localhost)
                  UUID : a055094e:9adaff79:2edae9b9:0dcc3f1b
                Events : 40

        Number   Major   Minor   RaidDevice State
           3       8       65        0      active sync   /dev/sde1
           1       8       33        1      active sync   /dev/sdc1
           4       8       49        2      active sync   /dev/sdd1

  • 重新添加热备份盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36

    [root@localhost ~]# mdadm -a /dev/md5 /dev/sdb1
    mdadm: added /dev/sdb1

    [root@localhost ~]# mdadm -D /dev/md5
    /dev/md5:
               Version : 1.2
         Creation Time : Sun Aug 25 16:13:44 2019
            Raid Level : raid5
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 3
         Total Devices : 4
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:25:22 2019
                 State : clean
        Active Devices : 3
       Working Devices : 4
        Failed Devices : 0
         Spare Devices : 1

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:5  (local to host localhost)
                  UUID : a055094e:9adaff79:2edae9b9:0dcc3f1b
                Events : 41

        Number   Major   Minor   RaidDevice State
           3       8       65        0      active sync   /dev/sde1
           1       8       33        1      active sync   /dev/sdc1
           4       8       49        2      active sync   /dev/sdd1

           5       8       17        -      spare   /dev/sdb1

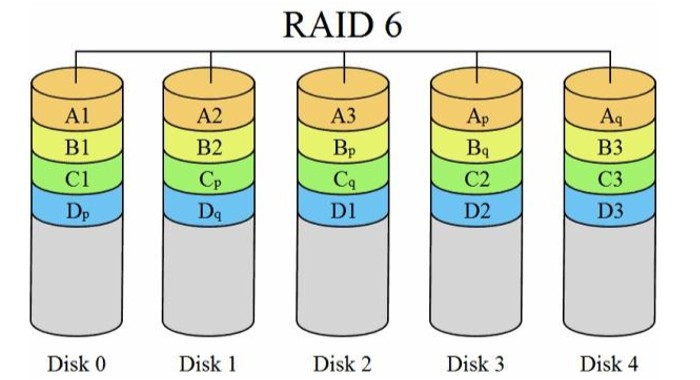

RAID6

  • RAID6是在RAID5的基础上改良而成的,RAID6再将数据校验位增加一位,所以允许损坏的硬盘数量也由 RAID5的一个增加到二个。由于同一阵列中两个硬盘同时损坏的概率非常少,所以,RAID6用增加一块硬盘的代价,换来了比RAID5更高的数据安全性
  • 实验: RAID6创建,格式化,挂载使用,故障模拟,重新添加热备份
  • 添加6块20G的硬盘,分区,类型ID为fd。
    1
    2
    3
    4
    5
    6
    7

    [root@localhost ~]# fdisk -l | grep raid
    /dev/sdb1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdc1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdd1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sde1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdf1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdg1            2048    41943039    20970496   fd  Linux raid autodetect

  • 创建RAID6,并添加2个热备份盘。
    1
    2
    3
    4
    5
    6
    7
    8

    [root@localhost ~]# mdadm -C -v /dev/md6 -l6 -n4 /dev/sd[b-e]1 -x2 /dev/sd[f-g]1
    mdadm: layout defaults to left-symmetric
    mdadm: layout defaults to left-symmetric
    mdadm: chunk size defaults to 512K
    mdadm: size set to 20953088K
    mdadm: Fail create md6 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md6 started.

  • 查看raidstat状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md6 : active raid6 sdg1[5](S) sdf1[4](S) sde1[3] sdd1[2] sdc1[1] sdb1[0]
          41906176 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]
          [===>.................]  resync = 18.9% (3962940/20953088) finish=1.3min speed=208575K/sec

    unused devices: <none>

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md6 : active raid6 sdg1[5](S) sdf1[4](S) sde1[3] sdd1[2] sdc1[1] sdb1[0]
          41906176 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

    unused devices: <none>

  • 查看RAID6的详细信息。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37

    [root@localhost ~]# mdadm -D /dev/md6
    /dev/md6:
               Version : 1.2
         Creation Time : Sun Aug 25 16:34:36 2019
            Raid Level : raid6
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 4
         Total Devices : 6
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:34:43 2019
                 State : clean, resyncing
        Active Devices : 4
       Working Devices : 6
        Failed Devices : 0
         Spare Devices : 2

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

         Resync Status : 10% complete

                  Name : localhost:6  (local to host localhost)
                  UUID : 7c3d15a2:4066f2c6:742f3e4c:82aae1bb
                Events : 1

        Number   Major   Minor   RaidDevice State
           0       8       17        0      active sync   /dev/sdb1
           1       8       33        1      active sync   /dev/sdc1
           2       8       49        2      active sync   /dev/sdd1
           3       8       65        3      active sync   /dev/sde1

           4       8       81        -      spare   /dev/sdf1
           5       8       97        -      spare   /dev/sdg1

  • 格式化。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    [root@localhost ~]# mkfs.xfs /dev/md6
    meta-data=/dev/md6               isize=512    agcount=16, agsize=654720 blks
             =                       sectsz=512   attr=2, projid32bit=1
             =                       crc=1        finobt=0, sparse=0
    data     =                       bsize=4096   blocks=10475520, imaxpct=25
             =                       sunit=128    swidth=256 blks
    naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
    log      =internal log           bsize=4096   blocks=5120, version=2
             =                       sectsz=512   sunit=8 blks, lazy-count=1
    realtime =none                   extsz=4096   blocks=0, rtextents=0

  • 挂载使用。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    [root@localhost ~]# mkdir /mnt/md6
    [root@localhost ~]# mount /dev/md6 /mnt/md6/
    [root@localhost ~]# df -hT
    Filesystem              Type      Size  Used Avail Use% Mounted on
    /dev/mapper/centos-root xfs        17G 1014M   16G   6% /
    devtmpfs                devtmpfs  901M     0  901M   0% /dev
    tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
    tmpfs                   tmpfs     912M  8.7M  903M   1% /run
    tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
    /dev/sda1               xfs      1014M  143M  872M  15% /boot
    tmpfs                   tmpfs     183M     0  183M   0% /run/user/0
    /dev/md6                xfs        40G   33M   40G   1% /mnt/md6

  • 创建测试文件。
    1
    2
    3

    [root@localhost ~]# touch /mnt/md6/test{1..9}.txt
    [root@localhost ~]# ls /mnt/md6/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 故障模拟。
    1
    2
    3
    4

    [root@localhost ~]# mdadm -f /dev/md6 /dev/sdb1
    mdadm: set /dev/sdb1 faulty in /dev/md6
    [root@localhost ~]# mdadm -f /dev/md6 /dev/sdc1
    mdadm: set /dev/sdc1 faulty in /dev/md6

  • 查看测试文件。
    1
    2

    [root@localhost ~]# ls /mnt/md6/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 查看状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md6 : active raid6 sdg1[5] sdf1[4] sde1[3] sdd1[2] sdc1[1](F) sdb1[0](F)
          41906176 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/2] [__UU]
          [====>................]  recovery = 23.8% (4993596/20953088) finish=1.2min speed=208066K/sec

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md6
    /dev/md6:
               Version : 1.2
         Creation Time : Sun Aug 25 16:34:36 2019
            Raid Level : raid6
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 4
         Total Devices : 6
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:41:09 2019
                 State : clean, degraded, recovering
        Active Devices : 2
       Working Devices : 4
        Failed Devices : 2
         Spare Devices : 2

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

        Rebuild Status : 13% complete

                  Name : localhost:6  (local to host localhost)
                  UUID : 7c3d15a2:4066f2c6:742f3e4c:82aae1bb
                Events : 27

        Number   Major   Minor   RaidDevice State
           5       8       97        0      spare rebuilding   /dev/sdg1
           4       8       81        1      spare rebuilding   /dev/sdf1
           2       8       49        2      active sync   /dev/sdd1
           3       8       65        3      active sync   /dev/sde1

           0       8       17        -      faulty   /dev/sdb1
           1       8       33        -      faulty   /dev/sdc1

  • 再次查看状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid6] [raid5] [raid4]
    md6 : active raid6 sdg1[5] sdf1[4] sde1[3] sdd1[2] sdc1[1](F) sdb1[0](F)
          41906176 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md6
    /dev/md6:
               Version : 1.2
         Creation Time : Sun Aug 25 16:34:36 2019
            Raid Level : raid6
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 4
         Total Devices : 6
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:42:42 2019
                 State : clean
        Active Devices : 4
       Working Devices : 4
        Failed Devices : 2
         Spare Devices : 0

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:6  (local to host localhost)
                  UUID : 7c3d15a2:4066f2c6:742f3e4c:82aae1bb
                Events : 46

        Number   Major   Minor   RaidDevice State
           5       8       97        0      active sync   /dev/sdg1
           4       8       81        1      active sync   /dev/sdf1
           2       8       49        2      active sync   /dev/sdd1
           3       8       65        3      active sync   /dev/sde1

           0       8       17        -      faulty   /dev/sdb1
           1       8       33        -      faulty   /dev/sdc1

  • 移除损坏的磁盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36

    [root@localhost ~]# mdadm -r /dev/md6 /dev/sd{b,c}1
    mdadm: hot removed /dev/sdb1 from /dev/md6
    mdadm: hot removed /dev/sdc1 from /dev/md6

    [root@localhost ~]# mdadm -D /dev/md6
    /dev/md6:
               Version : 1.2
         Creation Time : Sun Aug 25 16:34:36 2019
            Raid Level : raid6
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 4
         Total Devices : 4
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:43:43 2019
                 State : clean
        Active Devices : 4
       Working Devices : 4
        Failed Devices : 0
         Spare Devices : 0

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:6  (local to host localhost)
                  UUID : 7c3d15a2:4066f2c6:742f3e4c:82aae1bb
                Events : 47

        Number   Major   Minor   RaidDevice State
           5       8       97        0      active sync   /dev/sdg1
           4       8       81        1      active sync   /dev/sdf1
           2       8       49        2      active sync   /dev/sdd1
           3       8       65        3      active sync   /dev/sde1

  • 重新添加热备份盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39

    [root@localhost ~]# mdadm -a /dev/md6 /dev/sd{b,c}1
    mdadm: added /dev/sdb1
    mdadm: added /dev/sdc1

    [root@localhost ~]# mdadm -D /dev/md6
    /dev/md6:
               Version : 1.2
         Creation Time : Sun Aug 25 16:34:36 2019
            Raid Level : raid6
            Array Size : 41906176 (39.96 GiB 42.91 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 4
         Total Devices : 6
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:44:01 2019
                 State : clean
        Active Devices : 4
       Working Devices : 6
        Failed Devices : 0
         Spare Devices : 2

                Layout : left-symmetric
            Chunk Size : 512K

    Consistency Policy : resync

                  Name : localhost:6  (local to host localhost)
                  UUID : 7c3d15a2:4066f2c6:742f3e4c:82aae1bb
                Events : 49

        Number   Major   Minor   RaidDevice State
           5       8       97        0      active sync   /dev/sdg1
           4       8       81        1      active sync   /dev/sdf1
           2       8       49        2      active sync   /dev/sdd1
           3       8       65        3      active sync   /dev/sde1

           6       8       17        -      spare   /dev/sdb1
           7       8       33        -      spare   /dev/sdc1


RAID10

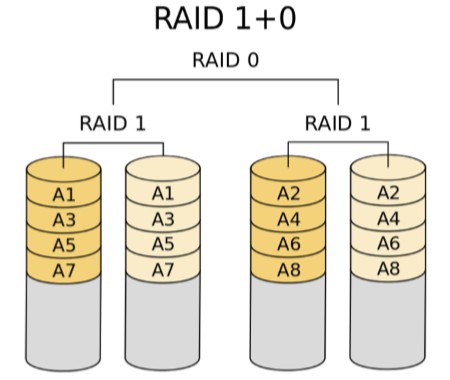

  • RAID10是先将数据进行镜像操作,然后再对数据进行分组,RAID1在这里就是一个冗余的备份阵列,而RAID0则负责数据的读写阵列。至少要四块盘,两两组合做RAID1,然后做RAID0,RAID10对存储容量的利用率和RAID1一样低,只有50%。Raid10方案造成了50%的磁盘浪费,但是它提供了200%的速度和单磁盘损坏的数据安全性,并且当同时损坏的磁盘不在同一RAID1中,就能保证数据安全性,RAID10能提供比RAID5更好的性能。这种新结构的可扩充性不好,使用此方案比较昂贵
  • 实验: RAID10创建,格式化,挂载使用,故障模拟,重新添加热备份
  • 添加4块20G的硬盘,分区,类型ID为fd。
    1
    2
    3
    4
    5

    [root@localhost ~]# fdisk -l | grep raid
    /dev/sdb1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdc1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sdd1            2048    41943039    20970496   fd  Linux raid autodetect
    /dev/sde1            2048    41943039    20970496   fd  Linux raid autodetect

  • 创建两个RAID1,不添加热备份盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23

    [root@localhost ~]# mdadm -C -v /dev/md101 -l1 -n2 /dev/sd{b,c}1
    mdadm: Note: this array has metadata at the start and
        may not be suitable as a boot device.  If you plan to
        store '/boot' on this device please ensure that
        your boot-loader understands md/v1.x metadata, or use
        --metadata=0.90
    mdadm: size set to 20953088K
    Continue creating array? y
    mdadm: Fail create md101 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md101 started.

    [root@localhost ~]# mdadm -C -v /dev/md102 -l1 -n2 /dev/sd{d,e}1
    mdadm: Note: this array has metadata at the start and
        may not be suitable as a boot device.  If you plan to
        store '/boot' on this device please ensure that
        your boot-loader understands md/v1.x metadata, or use
        --metadata=0.90
    mdadm: size set to 20953088K
    Continue creating array? y
    mdadm: Fail create md102 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md102 started.

  • 查看raidstat状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1]
    md102 : active raid1 sde1[1] sdd1[0]
          20953088 blocks super 1.2 [2/2] [UU]
          [=========>...........]  resync = 48.4% (10148224/20953088) finish=0.8min speed=200056K/sec

    md101 : active raid1 sdc1[1] sdb1[0]
          20953088 blocks super 1.2 [2/2] [UU]
          [=============>.......]  resync = 69.6% (14604672/20953088) finish=0.5min speed=200052K/sec

    unused devices: <none>

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1]
    md102 : active raid1 sde1[1] sdd1[0]
          20953088 blocks super 1.2 [2/2] [UU]

    md101 : active raid1 sdc1[1] sdb1[0]
          20953088 blocks super 1.2 [2/2] [UU]

    unused devices: <none>

  • 查看两个RAID1的详细信息。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59

    [root@localhost ~]# mdadm -D /dev/md101
    /dev/md101:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:00 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:53:58 2019
                 State : clean, resyncing
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

         Resync Status : 62% complete

                  Name : localhost:101  (local to host localhost)
                  UUID : 80bb4fc5:1a628936:275ba828:17f23330
                Events : 9

        Number   Major   Minor   RaidDevice State
           0       8       17        0      active sync   /dev/sdb1
           1       8       33        1      active sync   /dev/sdc1

    [root@localhost ~]# mdadm -D /dev/md102
    /dev/md102:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:23 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:54:02 2019
                 State : clean, resyncing
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

         Resync Status : 42% complete

                  Name : localhost:102  (local to host localhost)
                  UUID : 38abac72:74fa8a53:3a21b5e4:01ae64cd
                Events : 6

        Number   Major   Minor   RaidDevice State
           0       8       49        0      active sync   /dev/sdd1
           1       8       65        1      active sync   /dev/sde1

  • 创建RAID10。
    1
    2
    3
    4
    5

    [root@localhost ~]# mdadm -C -v /dev/md10 -l0 -n2 /dev/md10{1,2}
    mdadm: chunk size defaults to 512K
    mdadm: Fail create md10 when using /sys/module/md_mod/parameters/new_array
    mdadm: Defaulting to version 1.2 metadata
    mdadm: array /dev/md10 started.

  • 查看raidstat状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1] [raid0]
    md10 : active raid0 md102[1] md101[0]
          41871360 blocks super 1.2 512k chunks

    md102 : active raid1 sde1[1] sdd1[0]
          20953088 blocks super 1.2 [2/2] [UU]

    md101 : active raid1 sdc1[1] sdb1[0]
          20953088 blocks super 1.2 [2/2] [UU]

    unused devices: <none>

  • 查看RAID10的详细信息。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28

    [root@localhost ~]# mdadm -D /dev/md10
    /dev/md10:
               Version : 1.2
         Creation Time : Sun Aug 25 16:56:08 2019
            Raid Level : raid0
            Array Size : 41871360 (39.93 GiB 42.88 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:56:08 2019
                 State : clean
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

            Chunk Size : 512K

    Consistency Policy : none

                  Name : localhost:10  (local to host localhost)
                  UUID : 23c6abac:b131a049:db25cac8:686fb045
                Events : 0

        Number   Major   Minor   RaidDevice State
           0       9      101        0      active sync   /dev/md101
           1       9      102        1      active sync   /dev/md102

  • 格式化。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    [root@localhost ~]# mkfs.xfs /dev/md10
    meta-data=/dev/md10              isize=512    agcount=16, agsize=654208 blks
             =                       sectsz=512   attr=2, projid32bit=1
             =                       crc=1        finobt=0, sparse=0
    data     =                       bsize=4096   blocks=10467328, imaxpct=25
             =                       sunit=128    swidth=256 blks
    naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
    log      =internal log           bsize=4096   blocks=5112, version=2
             =                       sectsz=512   sunit=8 blks, lazy-count=1
    realtime =none                   extsz=4096   blocks=0, rtextents=0

  • 挂载使用。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    [root@localhost ~]# mkdir /mnt/md10
    [root@localhost ~]# mount /dev/md10 /mnt/md10/
    [root@localhost ~]# df -hT
    Filesystem              Type      Size  Used Avail Use% Mounted on
    /dev/mapper/centos-root xfs        17G 1014M   16G   6% /
    devtmpfs                devtmpfs  901M     0  901M   0% /dev
    tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
    tmpfs                   tmpfs     912M  8.7M  903M   1% /run
    tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
    /dev/sda1               xfs      1014M  143M  872M  15% /boot
    tmpfs                   tmpfs     183M     0  183M   0% /run/user/0
    /dev/md10               xfs        40G   33M   40G   1% /mnt/md10

  • 创建测试文件。
    1
    2
    3

    [root@localhost ~]# touch /mnt/md10/test{1..9}.txt
    [root@localhost ~]# ls /mnt/md10/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 故障模拟。
    1
    2
    3
    4

    [root@localhost ~]# mdadm -f /dev/md101 /dev/sdb1
    mdadm: set /dev/sdb1 faulty in /dev/md101
    [root@localhost ~]# mdadm -f /dev/md102 /dev/sdd1
    mdadm: set /dev/sdd1 faulty in /dev/md102

  • 查看测试文件。
    1
    2

    [root@localhost ~]# ls /mnt/md10/
    test1.txt  test2.txt  test3.txt  test4.txt  test5.txt  test6.txt  test7.txt  test8.txt  test9.txt

  • 查看状态。
      1
      2
      3
      4
      5
      6
      7
      8
      9
     10
     11
     12
     13
     14
     15
     16
     17
     18
     19
     20
     21
     22
     23
     24
     25
     26
     27
     28
     29
     30
     31
     32
     33
     34
     35
     36
     37
     38
     39
     40
     41
     42
     43
     44
     45
     46
     47
     48
     49
     50
     51
     52
     53
     54
     55
     56
     57
     58
     59
     60
     61
     62
     63
     64
     65
     66
     67
     68
     69
     70
     71
     72
     73
     74
     75
     76
     77
     78
     79
     80
     81
     82
     83
     84
     85
     86
     87
     88
     89
     90
     91
     92
     93
     94
     95
     96
     97
     98
     99
    100
    101

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1] [raid0]
    md10 : active raid0 md102[1] md101[0]
          41871360 blocks super 1.2 512k chunks

    md102 : active raid1 sde1[1] sdd1[0](F)
          20953088 blocks super 1.2 [2/1] [_U]

    md101 : active raid1 sdc1[1] sdb1[0](F)
          20953088 blocks super 1.2 [2/1] [_U]

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md101
    /dev/md101:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:00 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 17:01:11 2019
                 State : clean, degraded
        Active Devices : 1
       Working Devices : 1
        Failed Devices : 1
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:101  (local to host localhost)
                  UUID : 80bb4fc5:1a628936:275ba828:17f23330
                Events : 23

        Number   Major   Minor   RaidDevice State
           -       0        0        0      removed
           1       8       33        1      active sync   /dev/sdc1

           0       8       17        -      faulty   /dev/sdb1

    [root@localhost ~]# mdadm -D /dev/md102
    /dev/md102:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:23 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 17:00:43 2019
                 State : clean, degraded
        Active Devices : 1
       Working Devices : 1
        Failed Devices : 1
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:102  (local to host localhost)
                  UUID : 38abac72:74fa8a53:3a21b5e4:01ae64cd
                Events : 19

        Number   Major   Minor   RaidDevice State
           -       0        0        0      removed
           1       8       65        1      active sync   /dev/sde1

           0       8       49        -      faulty   /dev/sdd1

    [root@localhost ~]# mdadm -D /dev/md10
    /dev/md10:
               Version : 1.2
         Creation Time : Sun Aug 25 16:56:08 2019
            Raid Level : raid0
            Array Size : 41871360 (39.93 GiB 42.88 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 16:56:08 2019
                 State : clean
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

            Chunk Size : 512K

    Consistency Policy : none

                  Name : localhost:10  (local to host localhost)
                  UUID : 23c6abac:b131a049:db25cac8:686fb045
                Events : 0

        Number   Major   Minor   RaidDevice State
           0       9      101        0      active sync   /dev/md101
           1       9      102        1      active sync   /dev/md102

  • 移除损坏的磁盘。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60

    [root@localhost ~]# mdadm -r /dev/md101 /dev/sdb1
    mdadm: hot removed /dev/sdb1 from /dev/md101
    [root@localhost ~]# mdadm -r /dev/md102 /dev/sdd1
    mdadm: hot removed /dev/sdd1 from /dev/md102

    [root@localhost ~]# mdadm -D /dev/md101
    /dev/md101:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:00 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 1
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 17:04:59 2019
                 State : clean, degraded
        Active Devices : 1
       Working Devices : 1
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:101  (local to host localhost)
                  UUID : 80bb4fc5:1a628936:275ba828:17f23330
                Events : 26

        Number   Major   Minor   RaidDevice State
           -       0        0        0      removed
           1       8       33        1      active sync   /dev/sdc1

    [root@localhost ~]# mdadm -D /dev/md102
    /dev/md102:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:23 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 1
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 17:05:07 2019
                 State : clean, degraded
        Active Devices : 1
       Working Devices : 1
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:102  (local to host localhost)
                  UUID : 38abac72:74fa8a53:3a21b5e4:01ae64cd
                Events : 20

        Number   Major   Minor   RaidDevice State
           -       0        0        0      removed
           1       8       65        1      active sync   /dev/sde1

  • 重新添加热备份盘。
    1
    2
    3
    4

    [root@localhost ~]# mdadm -a /dev/md101 /dev/sdb1
    mdadm: added /dev/sdb1
    [root@localhost ~]# mdadm -a /dev/md102 /dev/sdd1
    mdadm: added /dev/sdd1

  • 再次查看状态。
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1] [raid0]
    md10 : active raid0 md102[1] md101[0]
          41871360 blocks super 1.2 512k chunks

    md102 : active raid1 sdd1[2] sde1[1]
          20953088 blocks super 1.2 [2/1] [_U]
          [====>................]  recovery = 23.8% (5000704/20953088) finish=1.2min speed=208362K/sec

    md101 : active raid1 sdb1[2] sdc1[1]
          20953088 blocks super 1.2 [2/1] [_U]
          [======>..............]  recovery = 32.0% (6712448/20953088) finish=1.1min speed=203407K/sec

    unused devices: <none>

    [root@localhost ~]# cat /proc/mdstat
    Personalities : [raid1] [raid0]
    md10 : active raid0 md102[1] md101[0]
          41871360 blocks super 1.2 512k chunks

    md102 : active raid1 sdd1[2] sde1[1]
          20953088 blocks super 1.2 [2/2] [UU]

    md101 : active raid1 sdb1[2] sdc1[1]
          20953088 blocks super 1.2 [2/2] [UU]

    unused devices: <none>

    [root@localhost ~]# mdadm -D /dev/md101
    /dev/md101:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:00 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 17:07:28 2019
                 State : clean
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:101  (local to host localhost)
                  UUID : 80bb4fc5:1a628936:275ba828:17f23330
                Events : 45

        Number   Major   Minor   RaidDevice State
           2       8       17        0      active sync   /dev/sdb1
           1       8       33        1      active sync   /dev/sdc1

    [root@localhost ~]# mdadm -D /dev/md102
    /dev/md102:
               Version : 1.2
         Creation Time : Sun Aug 25 16:53:23 2019
            Raid Level : raid1
            Array Size : 20953088 (19.98 GiB 21.46 GB)
         Used Dev Size : 20953088 (19.98 GiB 21.46 GB)
          Raid Devices : 2
         Total Devices : 2
           Persistence : Superblock is persistent

           Update Time : Sun Aug 25 17:07:36 2019
                 State : clean
        Active Devices : 2
       Working Devices : 2
        Failed Devices : 0
         Spare Devices : 0

    Consistency Policy : resync

                  Name : localhost:102  (local to host localhost)
                  UUID : 38abac72:74fa8a53:3a21b5e4:01ae64cd
                Events : 39

        Number   Major   Minor   RaidDevice State
           2       8       49        0      active sync   /dev/sdd1
           1       8       65        1      active sync   /dev/sde1


常用 RAID 比较

名称 硬盘数量 容量/利用率 读性能 写性能 数据冗余
RAID0 N N块总和 N倍 N倍 无,一个故障,丢失所有数据
RAID1 N(偶数) 50% 写两个设备,允许一个故障
RAID5 N≥3 (N-1)/N ↑↑ 计算校验,允许一个故障
RAID6 N≥4 (N-2)/N ↑↑ ↓↓ 双重校验,允许两个故障
RAID10 N(偶数,N≥4) 50% (N/2)倍 (N/2)倍 允许基组中的磁盘各损坏一个

参考
